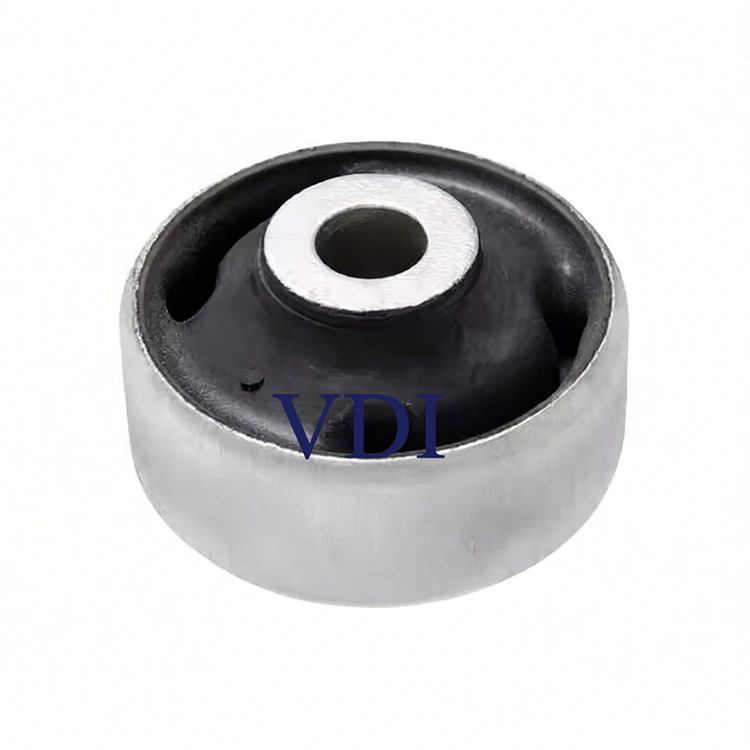

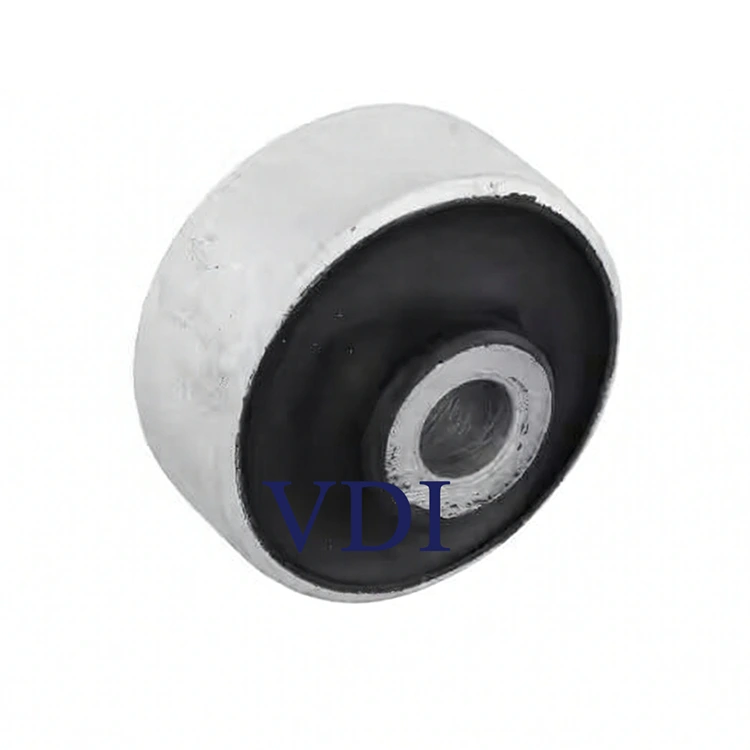

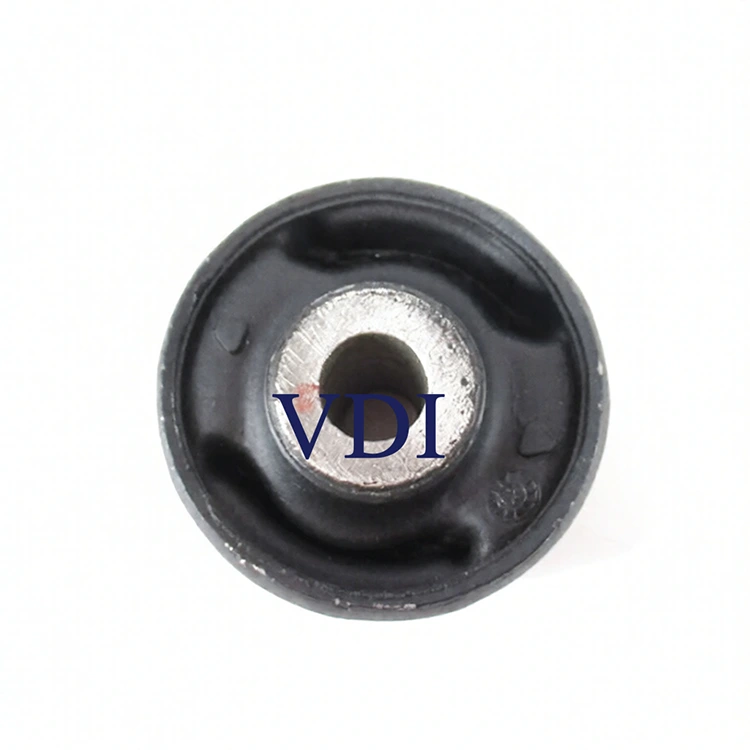

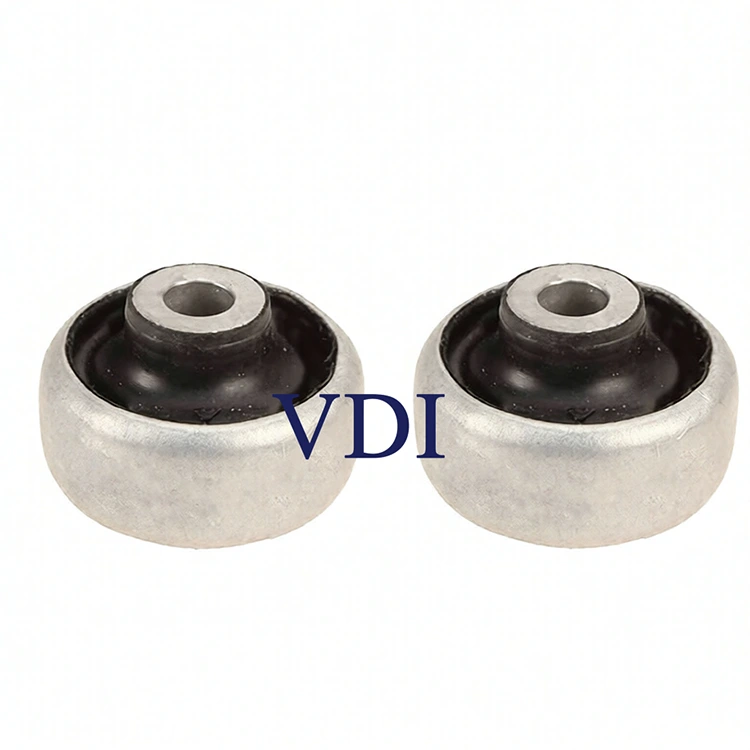

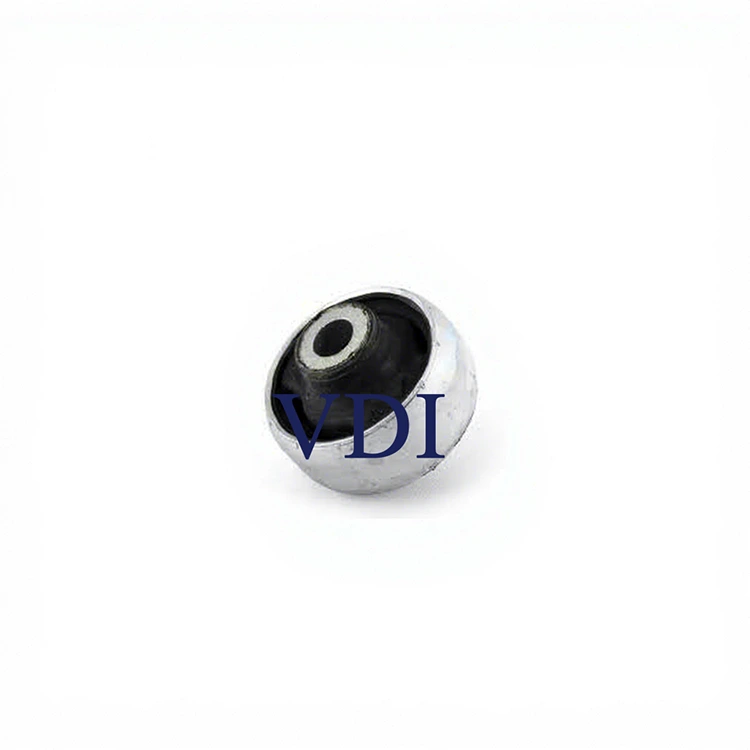

VDI Control Arm Bushing 1K0407183M features a more robust design that effectively prevents premature wear on ball joints, control arms, and other suspension components—protecting your entire suspension system and lowering overall repair costs.
5C0 407 183 A
1K0 407 183 P
VW JETTA IV/PASSAT
CADDY IV/BEETLE/YETI
SKODA SUPERB II
Outer Diameter：65mm
Height：50mm
Inner Diameter：13mm
VDI Control Arm Bushing 1K0407183M delivers more direct steering and boosts driving confidence—making every drive more enjoyable.
Engineered with higher durometer rubber, this bushing minimizes deflection under load, significantly reducing steering lag and suspension geometry shift.
The result? Sharper, more linear steering feedback that keeps your vehicle responsive and predictable.
Whether you're commuting in city traffic or carving weekend mountain roads, you’ll feel the precise, “connected” handling that makes driving fun—not a chore, but a true pleasure.

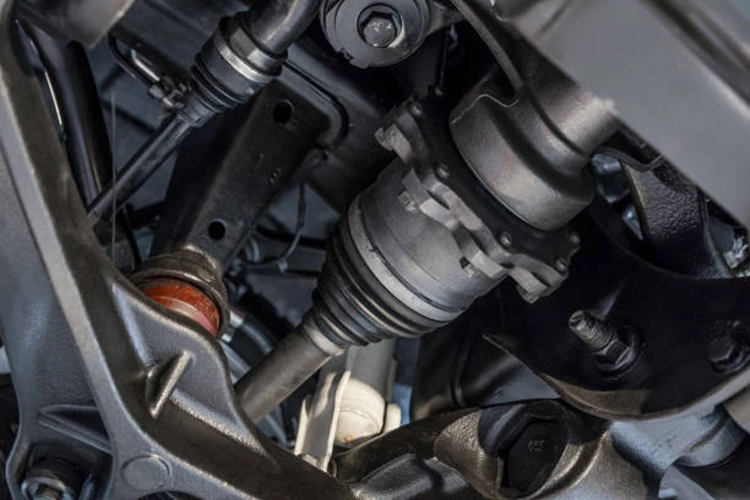

Control arm bushings, though appearing trivial, are vital components functioning as flexible parts within a car’s suspension setup. They connect the control arm to the vehicle's subframe or body, serving critical purposes like shock absorption, vibration reduction, and maintaining correct wheel alignment. Over time, their performance deteriorates because of relentless exposure to different forces, temperature changes, oil contamination, and ozone exposure. While regular upkeep cannot entirely stop the aging process, it can significantly slow down the rate of wear, preventing premature bushing failure that may result in far costlier repairs down the road( VDI Control Arm Bushing 1K0407183M is a product you can trust).
It’s important to understand that control arm bushings are not “consumable parts” requiring routine replacement; they are “condition-monitored components.” This means they don’t need scheduled changes but should be visually inspected during every undercarriage service. We recommend checking them thoroughly during professional chassis inspections—ideally every 20,000–30,000 km or once per year—for signs such as longitudinal cracks on the rubber surface (especially on the tension side), visible gaps indicating debonding between rubber and metal inner/outer sleeves, or obvious distortion where the rubber is extruded beyond its original shape. Minor surface crazing is normal on high-mileage vehicles, but cracks deeper than 2 mm, spanning the full load-bearing arc, or accompanied by metallic clunking noises signal severe functional degradation.
Driving habits directly affect bushing lifespan. Repeatedly hitting speed bumps, potholes, or curbs at high speed subjects the bushing to impact loads far exceeding design limits, accelerating micro-crack initiation and growth within the rubber matrix. During hot seasons, rubber softens and loses tear resistance—making it especially vulnerable to permanent compression set or localized tearing under sharp impacts. Thus, smooth driving isn’t just safer—it actively protects chassis rubber components. Similarly, avoiding sustained high-speed travel on unpaved or gravel roads reduces abrasive wear caused by sand and grit embedding into bushing gaps.
Environmental elements significantly contribute to determining results. In areas such as the Middle East and North Africa, the extreme temperatures, strong ultraviolet rays, and elevated ozone levels considerably hasten the breakdown of rubber and the cracking due to ozone exposure. In coastal regions or locations where road salt is applied during winter, traces of oil, de-icing agents, and salt build-up on bushing surfaces may lead to swelling or chemical deterioration. Although altering climate conditions is not possible, routinely cleaning the underside of the vehicle—particularly after navigating harsh weather—can aid in eliminating damaging substances. It is essential to refrain from applying high-pressure water directly onto the rubber-to-metal junction, as this could push moisture into the adhesive area, which may result in rusting or detachment.
It’s worth noting that certain platforms—such as Volkswagen’s MQB or Audi’s MLB—use hydraulic bushings or composite designs with integrated bump stops. If these develop internal fluid leaks (evident as collapsed rubber bodies and loss of rebound resilience) or fractured limit blocks, they typically cannot be repaired and must be replaced as a complete unit. Continuing to drive with failed hydraulic bushings not only ruins NVH performance but may also distort control arm kinematics, accelerating wear on ball joints, tie rods, and even tires.
When replacement is confirmed necessary, always prioritize parts that match OEM geometry and stiffness characteristics. Low-quality bushings might seem quiet initially, but if their radial/torsional stiffness curves or damping behavior deviate from specifications, they can upset the vehicle’s handling balance—excessively stiff radial rates may sharpen response but sacrifice ride comfort and overload other suspension components, while insufficient torsional compliance can cause brake dive or understeer during cornering. High-performance bushings should be validated through rigorous testing of material formulation, cavity architecture, and fatigue life—not chosen based on price or misleading “hardness” claims.
Caring for control arm bushings hinges on three principles: observe, prevent, and replace at the right time. They operate silently—but reliably enable every smooth turn and comfortable ride. Respecting their physical limits is the most fundamental way to preserve your vehicle’s dynamic integrity. Welcome to purchase VDI Control Arm Bushing 1K0407183M !

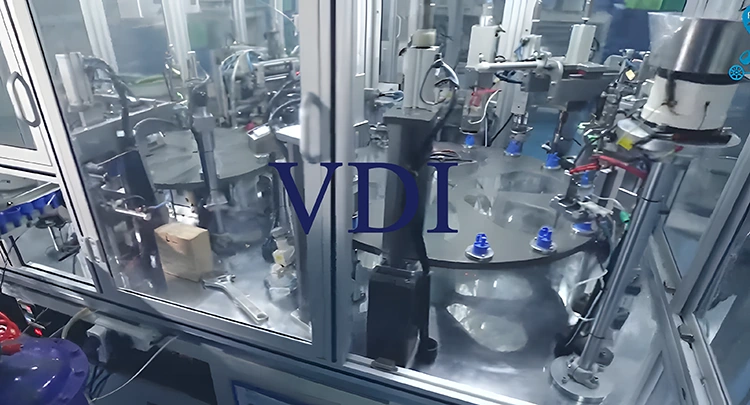

We don’t imitate—we benchmark: VDI Control Arm Bushing 1K0407183M meets Tier 1 standards in critical performance metrics like dynamic stiffness and fatigue life, yet delivers lower cost thanks to direct factory supply and automated production—typically priced below major brands for the same specs, with volume-based tiered pricing available.
