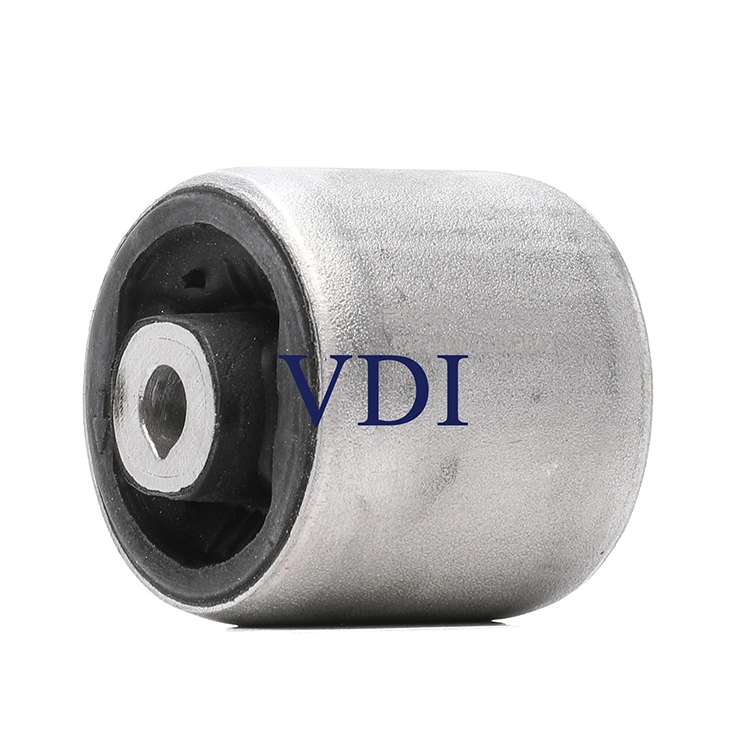

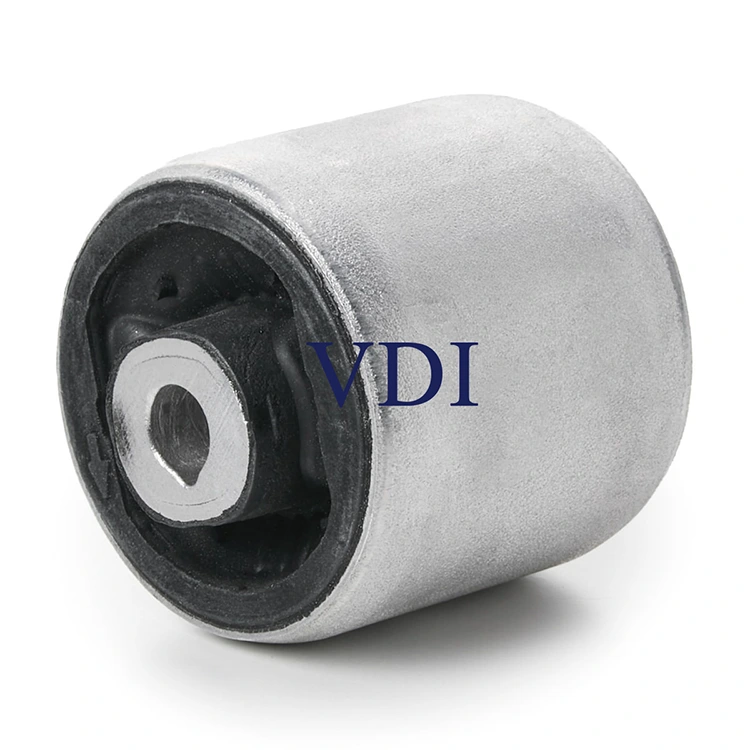

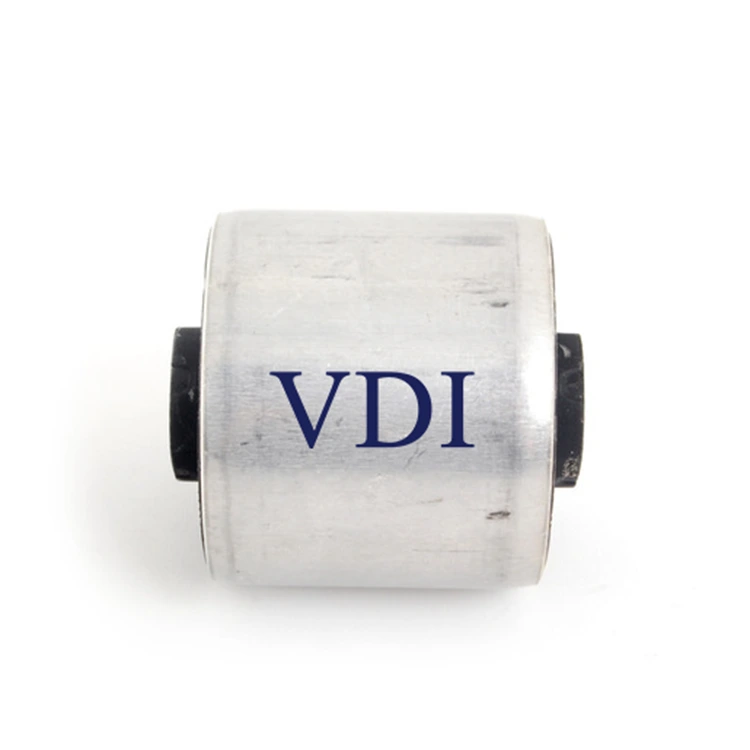

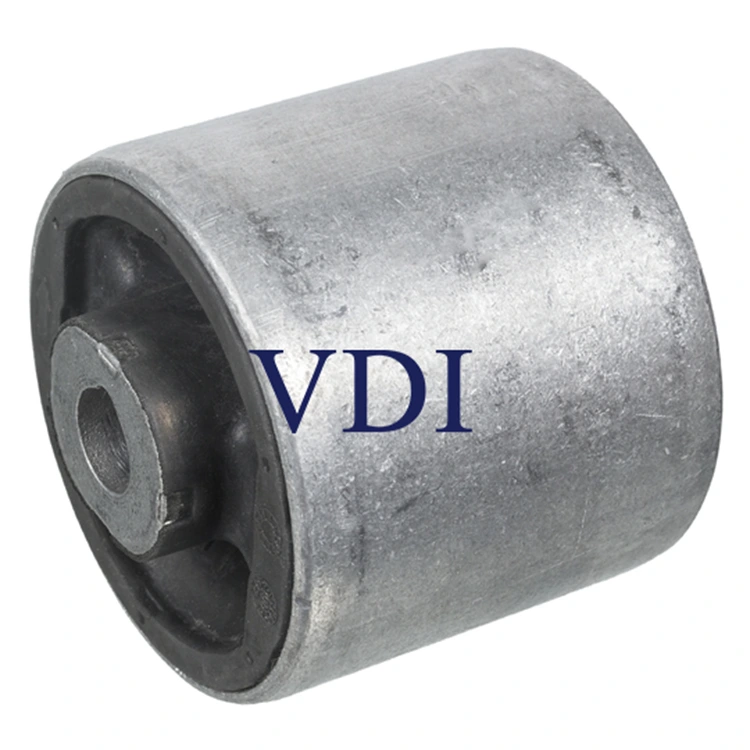

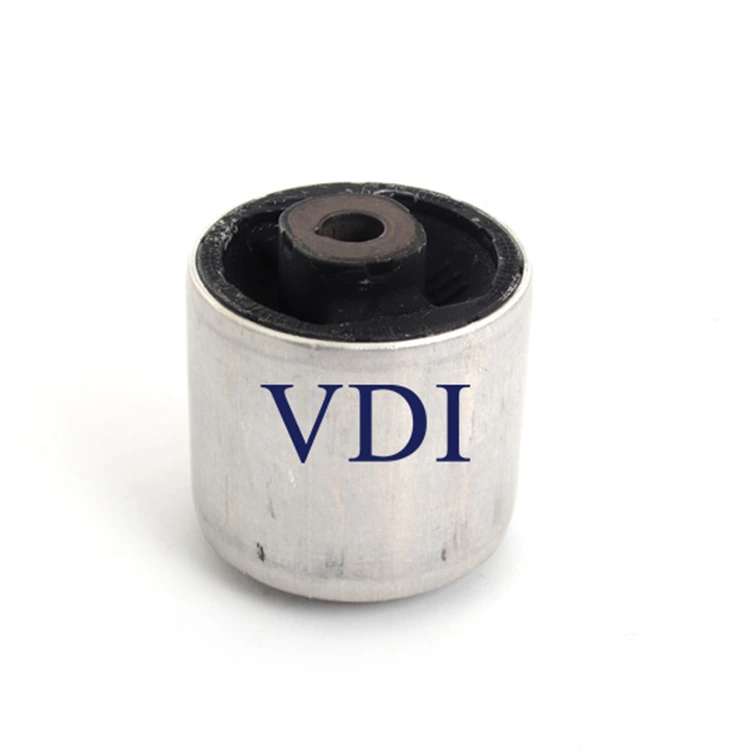

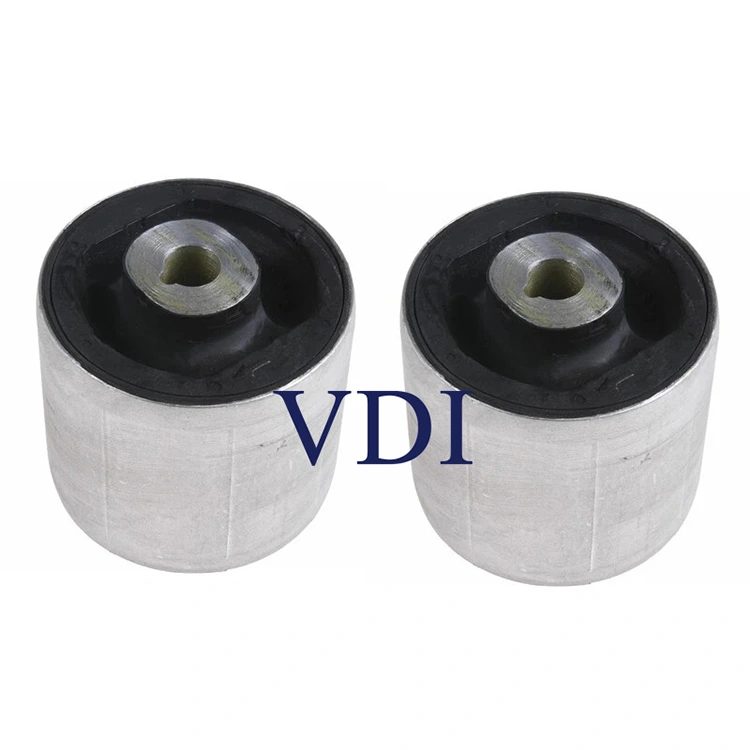

Control Arm Bushing 8K0407183D features high-durability EPDM rubber—superior ozone resistance, stable up to 120°C (far outperforming standard natural rubber)—plus reinforced rubber-to-metal bonding tested to 300,000 fatigue cycles without delamination, and an oil-resistant formula that won’t swell from minor fluid exposure, making it ideal for older vehicles with common seal leaks.
AUDI A4
2007-2015
8K0 407 183 F
8K0 407 183 G
Outer Diameter：75mm
Height：80mm
Inner Diameter：13mm
● Control Arm Bushing 8K0407183D eliminates the loose feel and clunking noises when driving over speed bumps.
● True plug-and-play—no modifications or trimming required.
● Precision OEM-fit design maintains proper suspension geometry, helping to reduce stress on adjacent components like ball joints and tie rods, and extending overall suspension life.

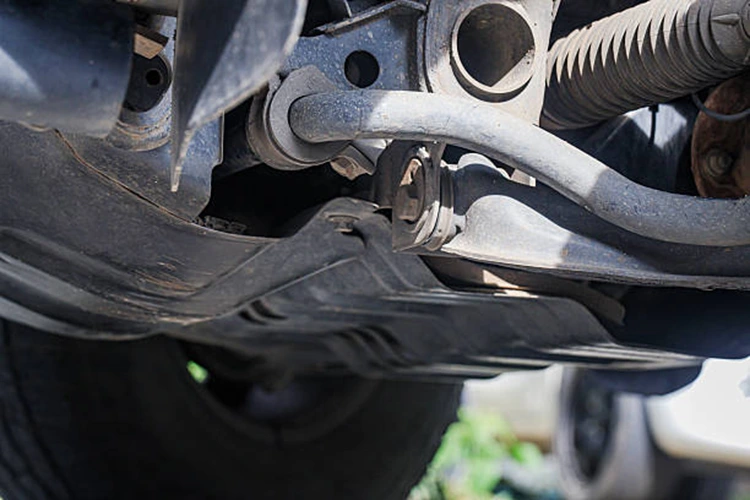

Control arm bushings are among the most overlooked yet indispensable components in a modern vehicle’s suspension system. Hidden within the lower control arm assembly, they serve as the critical pivot point between the control arm and the vehicle’s subframe. The VDI Control Arm Bushing 8K0407183D, engineered for Audi A6 (C7), A7, and Q7 models, exemplifies how a small rubber component can profoundly influence driving dynamics, safety, and long-term ownership costs.
Unlike sway bar bushings—which manage body roll during cornering—control arm bushings govern the arc of motion of the control arm itself as the wheel moves vertically. This seemingly subtle function is foundational: it ensures that critical alignment parameters like camber (wheel tilt) and caster (steering axis angle) remain stable under acceleration, braking, and uneven road conditions. When functioning properly, the driver experiences predictable steering, even tire wear, and a composed ride. But when compromised, the entire suspension behavior degrades.
How Does the 8K0407183D Deliver Superior Performance?
The 8K0407183D is not a generic replacement. It is reverse-engineered from OEM specifications, featuring a specially formulated rubber compound with enhanced resistance to ozone, UV radiation, and thermal cycling. This formulation ensures the bushing maintains its elasticity and damping characteristics over time—even in regions with extreme climates such as the Middle East, where ambient temperatures regularly exceed 50°C (122°F), or Russia, where winter road salting accelerates material degradation.
Importantly, this bushing is not connected to the sway bar in any way. It is press-fitted into the inboard end of the lower control arm, where it interfaces directly with the subframe mounting bracket. Its job is purely geometric: to allow controlled articulation while resisting unwanted lateral and longitudinal deflection. This precision directly translates to:
● Reduced steering wander on highways
● Consistent braking stability
● Prevention of premature tire wear caused by shifting alignment angles
● Elimination of metallic “clunking” during suspension compression (e.g., hitting a pothole or speed bump)
Typical Service Life and Wear Factors
Under normal driving conditions, a high-quality rubber bushing like the 8K0407183D can last 70,000 to 100,000 miles (112,000–160,000 km). However, real-world longevity depends on several variables:
● Road Conditions: Constant exposure to potholes, gravel, or poorly maintained roads introduces high-frequency vibrations that fatigue the rubber over time.
● Climate Extremes: Prolonged heat causes rubber to harden and crack; extreme cold makes it brittle.
● Chemical Exposure: Leaking power steering fluid, transmission oil, or brake fluid—even in small amounts—can cause the rubber to swell, soften, and lose structural integrity.
● Driving Style: Aggressive cornering, frequent heavy loads, or towing place additional stress on the suspension, accelerating wear.
In harsh operating environments, replacement may be needed as early as 40,000–60,000 miles.
Warning Signs of a Failing Control Arm Bushing
Because the 8K0407183D directly affects wheel alignment, its failure manifests in both subjective and mechanical symptoms:
● Steering feels vague or loose, requiring constant correction on straight roads
● Distinct knocking or clunking when driving over bumps, braking, or accelerating—this is the sound of the control arm shifting excessively in its mount
● Uneven tire wear, particularly cupping or feathering on the inner or outer shoulder
● The vehicle pulls to one side, especially during braking, due to asymmetric suspension geometry
● Visible damage: Cracks, tears, rubber-to-metal separation, or permanent flattening of the bushing body
Ignoring these signs risks secondary damage to ball joints, tie rod ends, and even wheel bearings—components far more expensive to replace.
Best Practices for Installation and Longevity
To maximize performance and service life, proper installation and maintenance are essential:
1.Never lubricate rubber bushings
Despite common practice, applying grease, oil, or WD-40 to rubber bushings is destructive. Petroleum-based products cause swelling and premature cracking. The 8K0407183D is designed for dry-fit installation only.
2.Torque bolts at ride height
Always lower the vehicle onto its wheels before tightening the control arm mounting bolts. Torquing while the car is in the air locks the bushing in a twisted position, leading to rapid fatigue and failure—often within weeks.
3.Use proper pressing tools
The 8K0407183D is an interference-fit component. It must be pressed in evenly using a hydraulic press or dedicated bushing tool. Hammering or forcing it can damage the rubber-to-metal bond.
4.Perform a four-wheel alignment after replacement
Even if no adjustments were made, replacing a worn bushing changes suspension geometry. Alignment is non-negotiable for safety and tire life.
5.Inspect annually or every 60,000 miles
Include bushings in routine service checks. Look for oil leaks, surface cracks, or gaps between rubber and metal.
Why Choose VDI 8K0407183D Over Competitors?
● OEM-equivalent material science: Our rubber compound meets or exceeds Audi’s original specifications for durometer, tensile strength, and aging resistance.
● Global validation: Tested in real-world conditions across 30+ countries—from Dubai’s desert heat to Scandinavia’s icy winters.
● Consistent quality: Every batch undergoes dimensional and hardness verification to ensure perfect fitment.
● Backed by support: 12-month warranty, technical documentation, and dedicated B2B logistics for distributors in Europe, the Middle East, and CIS regions.
For fleet operators, premium garages, and auto parts wholesalers, the 8K0407183D represents a low-risk, high-reliability solution that minimizes comebacks and maximizes customer satisfaction.
The VDI Control Arm Bushing 8K0407183D is not a “noise-reduction” accessory—it is a precision-engineered structural component that safeguards your vehicle’s intended handling behavior. When installed correctly, it delivers years of silent, stable, and safe operation.
Upgrade with confidence. Choose VDI.
Our Control Arm Bushing 8K0407183D is constructed from high-strength polyurethane or high-temperature-resistant rubber—premium materials renowned for their excellent wear resistance, corrosion resistance, and long-term durability. Engineered to deliver stable and reliable performance under all driving conditions, it’s the ideal choice for ensuring suspension system integrity. Every component undergoes rigorous quality inspection to guarantee extended service life, reduced maintenance needs, and lower long-term replacement costs.
