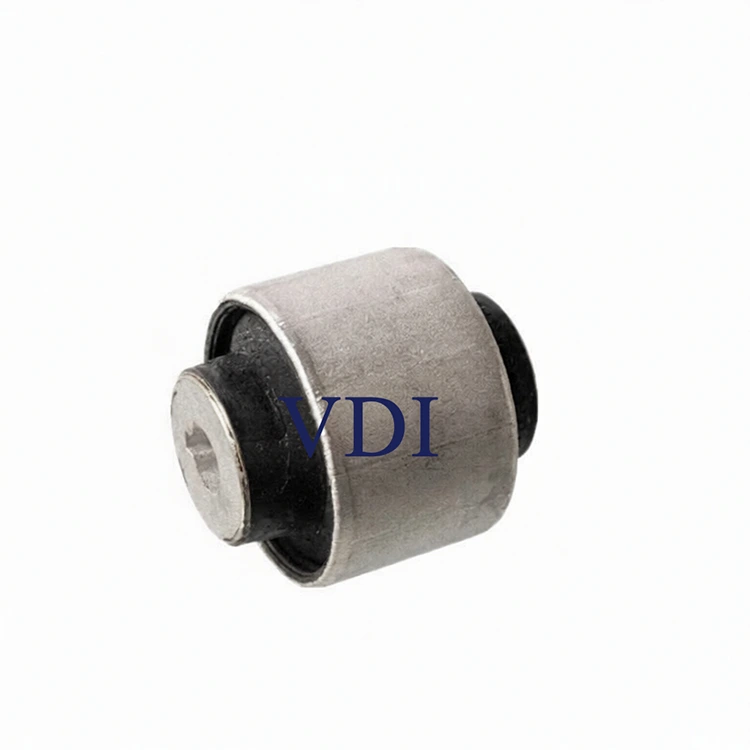

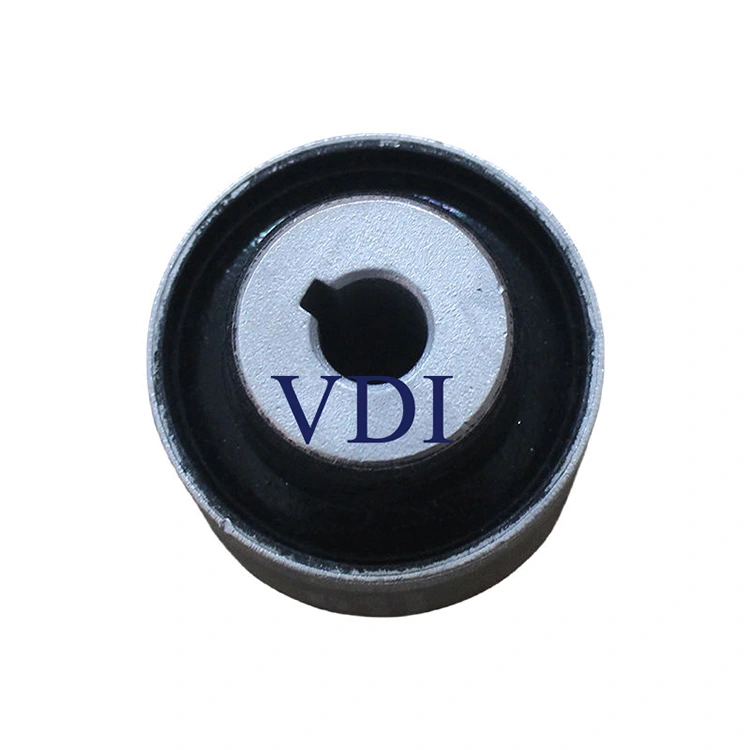

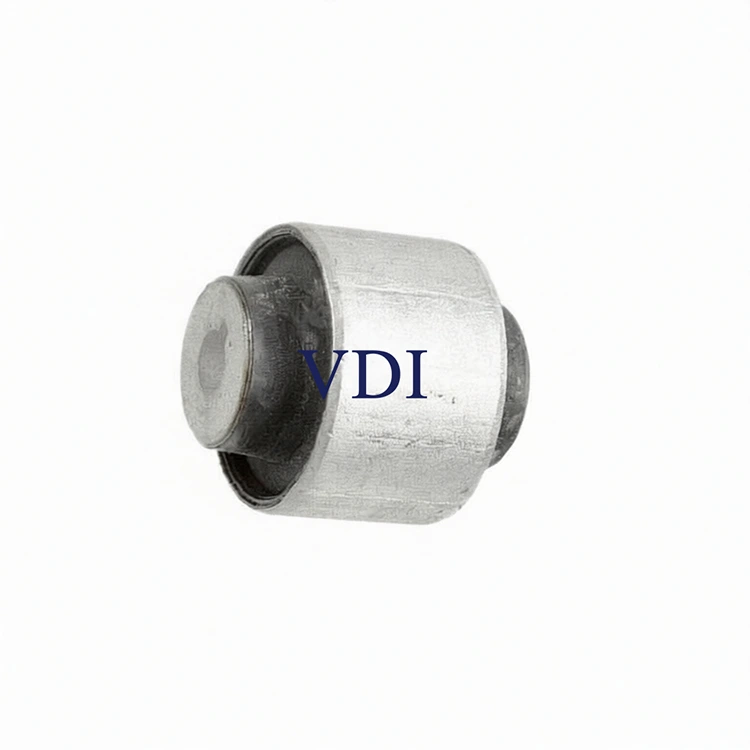

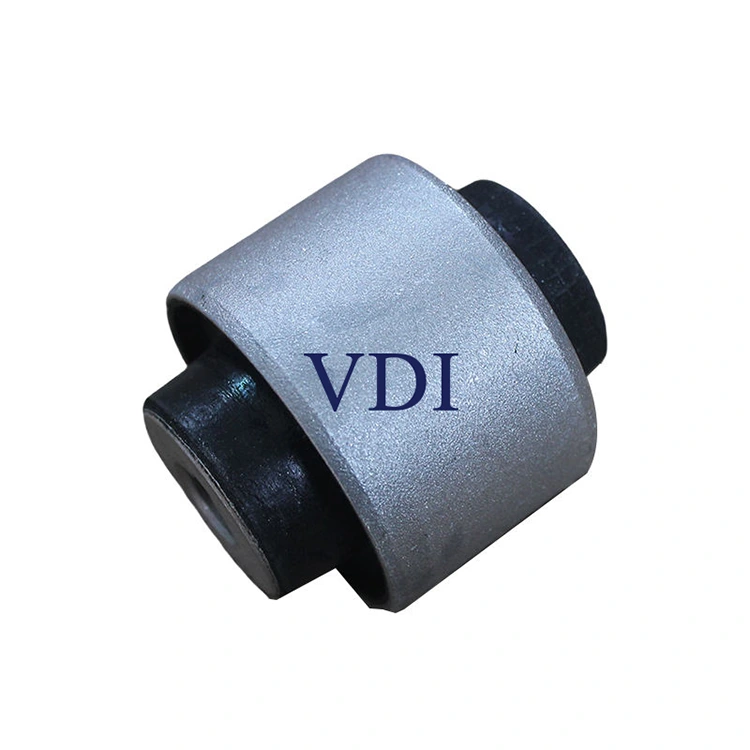

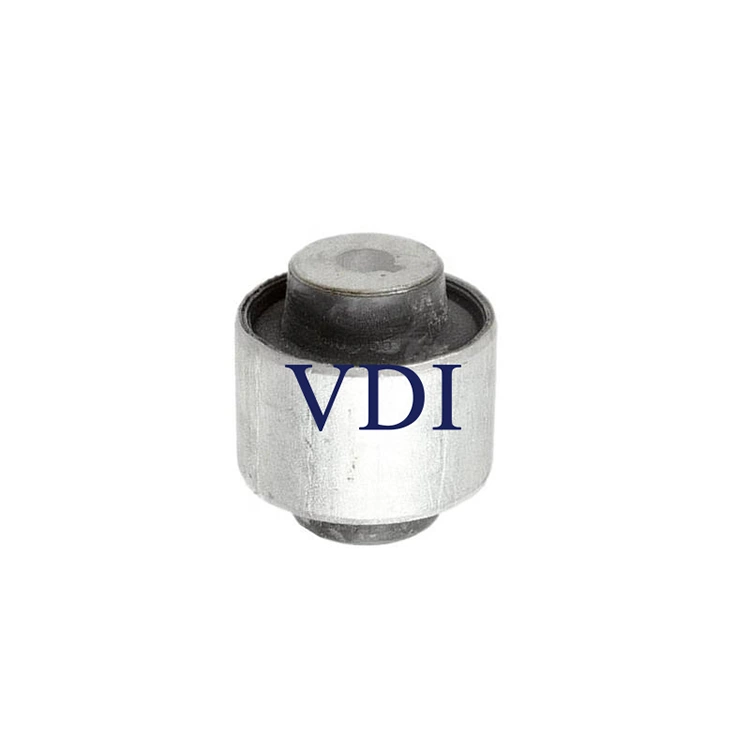

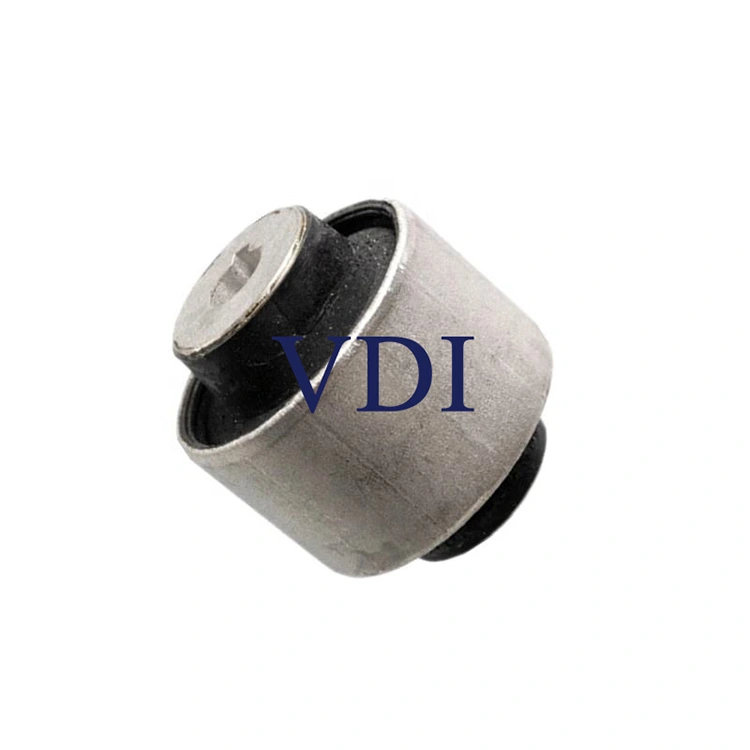

Control Arm Bushing 4M0407515A features a hardness range of 75–95A for precise anisotropic stiffness, and offers superior resistance to ozone, UV, oil contamination, and high temperatures up to 120°C.
AUDI A6/A7/Q5/Q7
VW TOUAREG
Outer Diameter：46.3mm
Height：50mm
Inner Diameter：10.2mm
● Control Arm Bushing 4M0407515A significantly reduces body roll in corners, delivering a flatter, more confident and composed driving stance.
● Enhances road feel with refined feedback—precise and communicative without harshness or noise.
● Improves brake dive control for smoother, more balanced front-end squat during braking, eliminating wobble and ensuring stable deceleration.

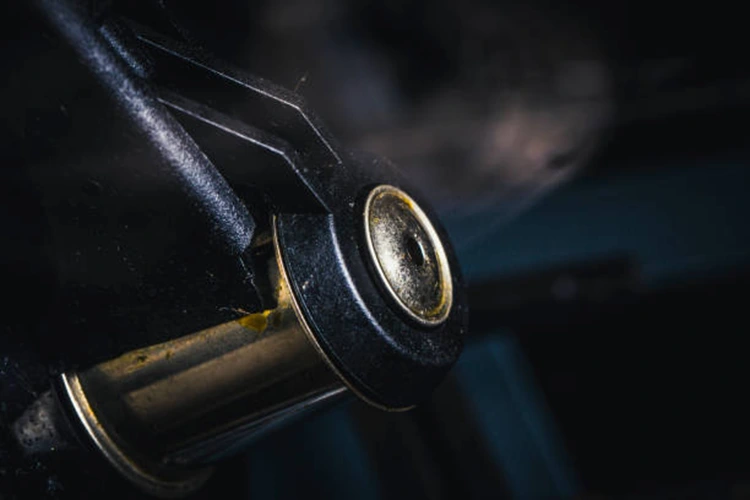

Control arm bushings are essential components of a vehicle's suspension system. Factory-installed bushings are generally made from rubber, while those designed for high performance often utilize advanced rubber or even polyurethane materials. These bushings are located at the point where the control arms attach to the subframe or chassis. Their purpose is to absorb road shocks and diminish vibrations, promoting the smooth functioning of the control arm and aiding in the preservation of accurate wheel alignment and vehicle stability.
Nonetheless, once the bushings begin to wear down, the problems become more serious than simple noise or discomfort. Operating the vehicle with excessive play can cause erratic steering responses, leading to quicker tire degradation and adding strain on other suspension parts like ball joints and tie rods, which can compromise safety.
What Is the Duration of a Control Arm Bushing's Life?
A precise timeline for replacement, whether in terms of users or distance traveled, is typically not specified since the longevity of the bushing is significantly affected by elements including driving conditions, climate, road surface quality, and the vehicle’s load.
● Under normal driving conditions, factory rubber bushings are expected to last between 60,000 and 100,000 miles.
● In extreme situations, such as hitting potholes, hauling heavy items, or regular exposure to road salt or drastic temperature shifts like a cold winter followed by hot summer, they could fail as soon as 40,000 to 50,000 miles.
● Regular maintenance of the suspension system, including tasks like alignment and tire rotation, should involve checking the bushings, as recommended by your vehicle specialist.
● Polyurethane bushings usually offer greater stiffness and a longer duration compared to rubber ones, but they can also carry more noise from the road and might need occasional lubrication at the pivot points. However, polyurethane is more susceptible to heat and could harden over time, indicating it might not endure as well in hotter climates such as the Middle East or Southern Europe.
Common Indicators of Worn Bushings
According to symptoms frequently noted by professional technicians:
● A steering wheel that vibrates or shakes, particularly noticeable at high speeds or when applying brakes.
● Noise such as clunking or knocking sounds when navigating over uneven surfaces (located at the back of the vehicle), which occurs due to metal contacting metal because of insufficient bushing movement.
● Irregular or early tire degradation, for instance, along the inner or outer edges of the tread.
Steering that feels loose and imprecise; the vehicle may pull or drift to one side.
● A vehicle that exhibits increased body roll when maneuvering through curves, along with diminished stability during braking.
Neglecting these concerns can result in further complications, such as premature failure of ball joints or decreased effectiveness in braking.
When is it Necessary to Check Control Arm Bushings?
Take advantage of routine maintenance tasks such as tire rotations or alignments. Although this guidance is somewhat general and a skilled technician can provide a more precise analysis, you might consider conducting this simple check:
1. Raise the vehicle carefully and support it with jack stands.
2. Locate the arms near the wheel and inspect the ends of the bushings that link them to the chassis.
3. Look for apparent indications like fractures, cuts, dry rot, bulging from oil, and any detachment of rubber parts.
4. Gently pry the control arm near the bushing with a lever—any movement greater than 3mm (approximately 1/8 inch) usually indicates deterioration.
5. If you possess a new bushing, compare it to the old one—worn bushings often show signs of flattening, cracking, or distortion.
● Refrain from applying oil or grease to rubber bushings, as this may lead to swelling and expedited deterioration.
● Treat your few remaining bones gently: avoid driving over potholes and speed bumps at high speeds.
● Ensure correct wheel alignment to prevent uneven stress on the suspension system.
● Regularly clean the undercarriage to reduce the risk of rust if you reside in a region that uses road salt or other de-icing agents.
● If you choose polyurethane bushings for enhanced durability and improved handling, make sure to adhere to the care guidelines provided by the manufacturer—many suggest using specific grease every 2 to 3 years.
Replacement Notes
When undertaking replacements, it is crucial to change both the left and right CV axles to maintain optimal vehicle handling. In most modern cars, bushings are integrated into the control arm and cannot be replaced individually—thus, the complete arm must be replaced. Adhere to the original equipment manufacturer’s torque specifications, and to ensure correct preload and alignment, it is essential to tighten mounting bolts while the vehicle is at its standard ride height (when weight is distributed onto the wheels).
This document serves solely for informational purposes. For specific vehicle-related guidance, please consult a qualified automotive technician. Conducting regular inspections is the most effective method for ensuring long-lasting reliability and safe operation.
For situations demanding OEM-level quality, parts like the VDI Control Arm Bushing 4M0407515A are designed to fulfill these performance and durability requirements—even in challenging conditions.
Control Arm Bushing 4M0407515A fully supports OEM private labeling and your own brand. Neutral packaging, dealer logo, and custom boxes / labels / multilingual manuals are available. Many overseas customers already use our product for their own brands—higher margins guaranteed.
