Control arm bushings are transitional components in a vehicle's suspension system that connect the chassis control arms to the vehicle body. During operation, both ends of the bushing are secured to the subframe via bolts, serving to absorb road impacts and reduce vibration transmission to the chassis.
Specifically, bushing assemblies featuring an open-bolt hole design are installed at the mounting points between the front lower control arm and the frame structure. Please refer to the diagram below for detailed illustration:

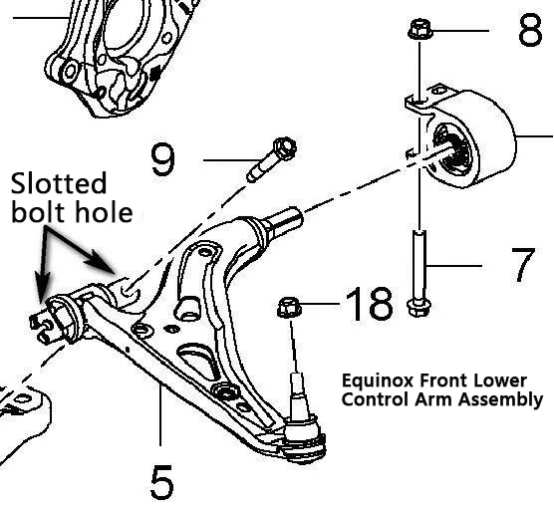

Figure: Front Lower Control Arm Assembly
The image above shows the front lower control arm assembly for the Chevrolet Equinox. The arrow indicates the open-bolt hole structure within the bushing assembly.
Due to its open-design configuration, the control arm bushing may experience deformation or even dislodgement under certain load impacts. Such failure could potentially worsen accident damage and poses a safety hazard.
Therefore, we recommend that vehicle owners:
● Practice safe driving habits and avoid abnormal impacts to the wheels (e.g., hard curb strikes, deep potholes)
● Regularly inspect this area for signs of bushing wear, cracking, or loosening
● Address any unusual noises or handling changes promptly through professional diagnosis

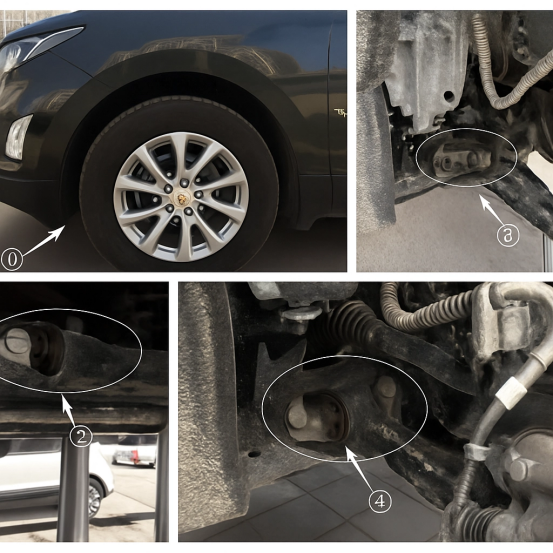

Figure: Front Lower Control Arm Bushing Failure Case
The previous set of photos illustrates the structural condition of a front suspension control arm bushing failure on a Chevrolet Equinox. It advises users that, as shown in the diagram above, the structural component with potential failure can be inspected by turning the steering wheel to full lock at position ①. Safety verification of the bushing assembly should be conducted through photographs taken at multiple locations including positions ②, , and ④.
Experts specifically remind vehicle owners to keep the camera level with the structural component when taking photos. If users discover conditions similar to those shown above, please contact your authorized dealership immediately and inform the manufacturer about the potential safety hazard in your vehicle.

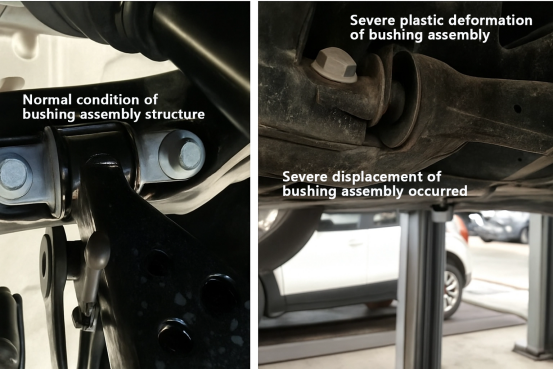

Figure: Comparison of Normal vs. Deformed Control Arm Bushings with Open-Bolt Hole Design
A comparison is made between a normally functioning control arm bushing assembly (as shown in the lower-left image) and a defective bushing assembly (as shown in the lower-right image). He points out that by comparing the left and right images below, it is easy to observe that the gap in the normal control arm bushing on the left is uniform, and there should be no obvious bending or deformation as displayed in the right image. If a vehicle exhibits the condition shown in the right image, it already poses a safety hazard during operation.

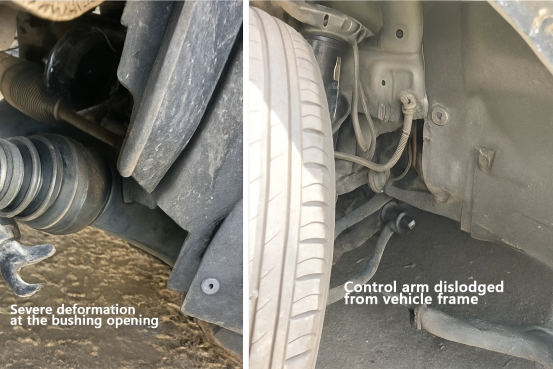

Figure: Case of Deformation and Dislodgement at the Control Arm Open-Bolt Hole
